Mars Pure Color Series

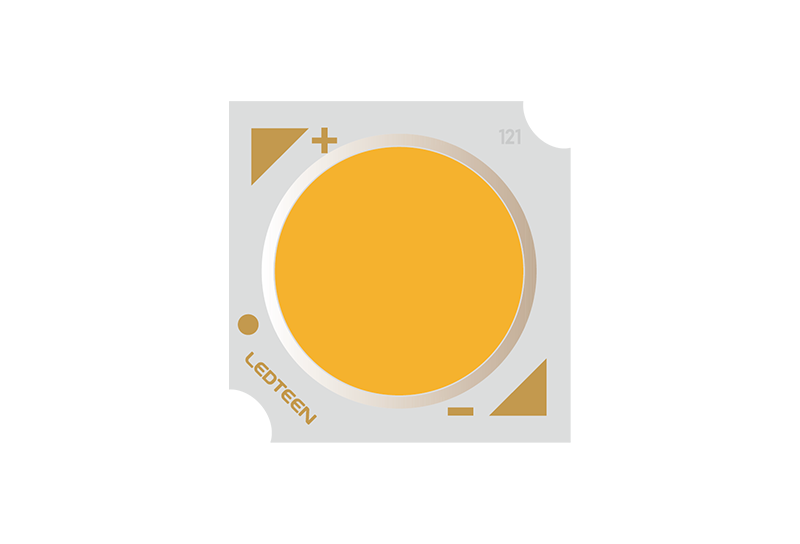

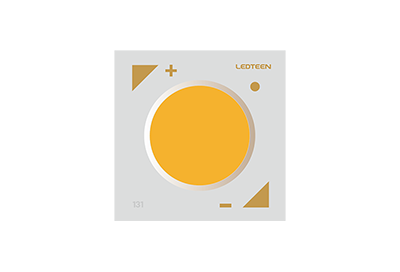

Mars P2121 Substrate

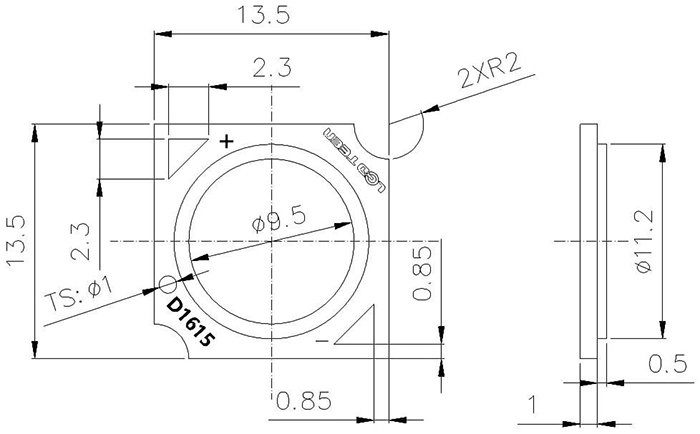

  • 13.5X13.5mm
  • LES 9.5mm
  • Power: 6~40W

Features

  • The color meets market preferences and targets the mid-to-high-end mainstream demand with international quality and great value.

  • It achieves ultimate color consistency in 1-Step and offers two color options, A and A+, both complying with ANSI standards.

  • The A+ color option is preferred by the human eye and is especially suitable for high-end dining, hotels, and smart homes.

  • It features industry-standard dimensions, strong compatibility, and easy design integration.

  • The product is highly reliable with a long lifespan, and the entire product range is LM-80 certified.

Mars P2121 Substrate Parameter

ProductCodeSize
(mm)
LES
(mm)
Power
(W)
CRICCT
(K)
IF
(mA)
MAX IF
(mA)
VF
(V)
Flux Typ.
(lm)
EfficacyTyp.
(lm/W)
P2121-006-1201-P2280-X13.5X13.59.56~10W80220015022035.9683127
P2121-006-1201-P2580-X250015022035.9707131
P2121-006-1201-P2780-X270015022035.9731136
P2121-006-1201-P3080-X300015022035.9770143
P2121-006-1201-P3580-X350015022035.9789147
P2121-006-1201-P4080-X400015022035.9809150
P2121-006-1201-P4580-X450015022035.9813151
P2121-006-1201-P5080-X500015022035.9818152
P2121-006-1201-P5780-X570015022035.9818152
P2121-006-1201-P6580-X650015022035.9809150
P2121-006-1201-P2290-X13.5X13.59.56~10W90220015022035.9581108
P2121-006-1201-P2590-X250015022035.9605113
P2121-006-1201-P2790-X270015022035.9629117
P2121-006-1201-P3090-X300015022035.9663123
P2121-006-1201-P3590-X350015022035.9683127
P2121-006-1201-P4090-X400015022035.9692129
P2121-006-1201-P4590-X450015022035.9700130
P2121-006-1201-P5090-X500015022035.9707131
P2121-006-1201-P5790-X570015022035.9707131
P2121-006-1201-P6590-X650015022035.9697130
P2121-006-1201-P2797-X13.5X13.59.56~10W97270015022035.949191
P2121-006-1201-P3097-X300015022035.953098
P2121-006-1201-P3597-X350015022035.9549102
P2121-006-1201-P4097-X400015022035.9568106
P2121-006-1201-P4595-X95450015022035.9595111
P2121-006-1201-P5095-X500015022035.9601112
P2121-012-1202-P2280-X13.5X13.59.510~15W80220030044035.91336124
P2121-012-1202-P2580-X250030044035.91385129
P2121-012-1202-P2780-X270030044035.91433133
P2121-012-1202-P3080-X300030044035.91511140
P2121-012-1202-P3580-X350030044035.91549144
P2121-012-1202-P4080-X400030044035.91588148
P2121-012-1202-P4580-X450030044035.91598149
P2121-012-1202-P5080-X500030044035.91608149
P2121-012-1202-P5780-X570030044035.91608149
P2121-012-1202-P6580-X650030044035.91588148
P2121-012-1202-P2290-X13.5X13.59.510~15W90220030044035.91133105
P2121-012-1202-P2590-X250030044035.91181110
P2121-012-1202-P2790-X270030044035.91230114
P2121-012-1202-P3090-X300030044035.91298121
P2121-012-1202-P3590-X350030044035.91336124
P2121-012-1202-P4090-X400030044035.91356126
P2121-012-1202-P4590-X450030044035.91370127
P2121-012-1202-P5090-X500030044035.91385129
P2121-012-1202-P5790-X570030044035.91385129
P2121-012-1202-P6590-X650030044035.91365127
P2121-012-1202-P2797-X13.5X13.59.510~15W97270030044035.995989
P2121-012-1202-P3097-X300030044035.9103796
P2121-012-1202-P3597-X350030044035.91076100
P2121-012-1202-P4097-X400030044035.91114104
P2121-012-1202-P4595-X95450030044035.91165108
P2121-012-1202-P5095-X500030044035.91177109
P2121-018-1203-P2280-X13.5X13.59.515-24W80220030066035.91327123
P2121-018-1203-P2580-X250045066035.92063128
P2121-018-1203-P2780-X270045066035.92135132
P2121-018-1203-P3080-X300045066035.92252140
P2121-018-1203-P3580-X350045066035.92310143
P2121-018-1203-P4080-X400045066035.92368147
P2121-018-1203-P4580-X450045066035.92382148
P2121-018-1203-P5080-X500045066035.92397149
P2121-018-1203-P5780-X570045066035.92397149
P2121-018-1203-P6580-X650045066035.92368147
P2121-018-1203-P2290-X13.5X13.59.515-24W90220045066035.91685104
P2121-018-1203-P2590-X250045066035.91758109
P2121-018-1203-P2790-X270045066035.91830113
P2121-018-1203-P3090-X300045066035.91932120
P2121-018-1203-P3590-X350045066035.91990123
P2121-018-1203-P4090-X400045066035.92019125
P2121-018-1203-P4590-X450045066035.92041126
P2121-018-1203-P5090-X500045066035.92063128
P2121-018-1203-P5790-X570045066035.92063128
P2121-018-1203-P6590-X650045066035.92034126
P2121-018-1203-P2797-X13.5X13.59.515-24W97270045066035.9142888
P2121-018-1203-P3097-X300045066035.9150793
P2121-018-1203-P3597-X350045066035.9155296
P2121-018-1203-P4097-X400045066035.9157598
P2121-018-1203-P4595-X95450045066035.91735107
P2121-018-1203-P5095-X500045066035.91753109
P2121-024-1204-P2280-X13.5X13.59.522-30W80220060088035.92557119
P2121-024-1204-P2580-X250060088035.92654123
P2121-024-1204-P2780-X270060088035.92750128
P2121-024-1204-P3080-X300060088035.92905135
P2121-024-1204-P3580-X350060088035.92983139
P2121-024-1204-P4080-X400060088035.93060142
P2121-024-1204-P4580-X450060088035.93080143
P2121-024-1204-P5080-X500060088035.93099144
P2121-024-1204-P5780-X570060088035.93099144
P2121-024-1204-P6580-X650060088035.93060142
P2121-024-1204-P2290-X13.5X13.59.522-30W90220060088035.92150100
P2121-024-1204-P2590-X250060088035.92247104
P2121-024-1204-P2790-X270060088035.92344109
P2121-024-1204-P3090-X300060088035.92479115
P2121-024-1204-P3590-X350060088035.92557119
P2121-024-1204-P4090-X400060088035.92595121
P2121-024-1204-P4590-X450060088035.92624122
P2121-024-1204-P5090-X500060088035.92654123
P2121-024-1204-P5790-X570060088035.92654123
P2121-024-1204-P6590-X650060088035.92615122
P2121-024-1204-P2797-X13.5X13.59.522-30W97270060088035.9182885
P2121-024-1204-P3097-X300060088035.9193490
P2121-024-1204-P3597-X350060088035.9199493
P2121-024-1204-P4097-X400060088035.9220694
P2121-024-1204-P4595-X95450060088035.92024104
P2121-024-1204-P5095-X500060088035.92255105
P2121-030-1205-P2280-X13.5X13.59.525~40W802200750110035.93123116
P2121-030-1205-P2580-X2500750110035.93244121
P2121-030-1205-P2780-X2700750110035.93365125
P2121-030-1205-P3080-X3000750110035.93559132
P2121-030-1205-P3580-X3500750110035.93656136
P2121-030-1205-P4080-X4000750110035.93753140
P2121-030-1205-P4580-X4500750110035.93777140
P2121-030-1205-P5080-X5000750110035.93801141
P2121-030-1205-P5780-X5700750110035.93801141
P2121-030-1205-P6580-X6500750110035.93753140
P2121-030-1205-P2290-X13.5X13.59.525~40W902200750110035.9261597
P2121-030-1205-P2590-X2500750110035.92736102
P2121-030-1205-P2790-X2700750110035.92857106
P2121-030-1205-P3090-X3000750110035.93026113
P2121-030-1205-P3590-X3500750110035.93123116
P2121-030-1205-P4090-X4000750110035.93172118
P2121-030-1205-P4590-X4500750110035.93208119
P2121-030-1205-P5090-X5000750110035.93244121
P2121-030-1205-P5790-X5700750110035.93244121
P2121-030-1205-P6590-X6500750110035.93196119
P2121-030-1205-P2797-X13.5X13.59.525~40W972700750110035.9222883
P2121-030-1205-P3097-X3000750110035.9242290
P2121-030-1205-P3597-X3500750110035.9251994
P2121-030-1205-P4097-X4000750110035.9261697
P2121-030-1205-P4595-X954500750110035.92727101
P2121-030-1205-P5095-X5000750110035.92758103
