The color meets market preferences and targets the mid-to-high-end mainstream demand with international quality and great value.
It achieves ultimate color consistency in 1-Step and offers two color options, A and A+, both complying with ANSI standards.
The A+ color option is preferred by the human eye and is especially suitable for high-end dining, hotels, and smart homes.

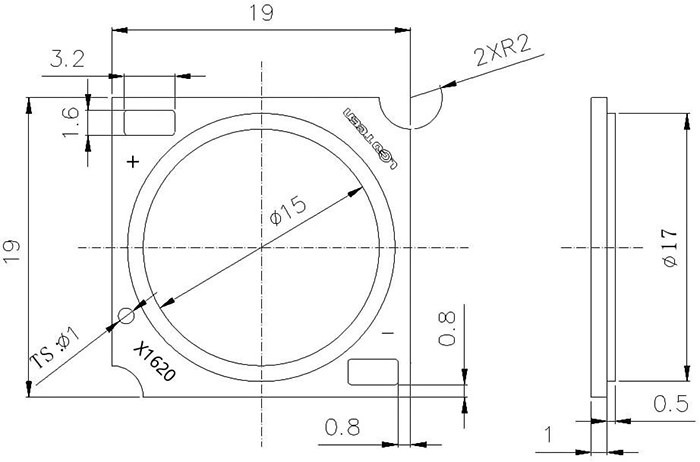

It features industry-standard dimensions, strong compatibility, and easy design integration.
The product is highly reliable with a long lifespan, and the entire product range is LM-80 certified.
| ProductCode |
Size (mm) |
LES (mm) |
Power (W) |
CRI |
CCT (K) |
IF (mA) |
MAX IF (mA） |
VF (V) |
Flux Typ. (lm) |
EfficacyTyp. (lm/W) |
|---|---|---|---|---|---|---|---|---|---|---|
| P2141-030-1205-P2280-X | 19X19 | 15 | 25~40W | 80 | 2200 | 750 | 1100 | 35.9 | 3293 | 122 |
| P2141-030-1205-P2580-X | 2500 | 750 | 1100 | 35.9 | 3414 | 127 | ||||
| P2141-030-1205-P2780-X | 2700 | 750 | 1100 | 35.9 | 3535 | 131 | ||||
| P2141-030-1205-P3080-X | 3000 | 750 | 1100 | 35.9 | 3728 | 139 | ||||
| P2141-030-1205-P3580-X | 3500 | 750 | 1100 | 35.9 | 3825 | 142 | ||||
| P2141-030-1205-P4080-X | 4000 | 750 | 1100 | 35.9 | 3922 | 146 | ||||
| P2141-030-1205-P4580-X | 4500 | 750 | 1100 | 35.9 | 3946 | 147 | ||||
| P2141-030-1205-P5080-X | 5000 | 750 | 1100 | 35.9 | 3971 | 148 | ||||
| P2141-030-1205-P5780-X | 5700 | 750 | 1100 | 35.9 | 3971 | 148 | ||||
| P2141-030-1205-P6580-X | 6500 | 750 | 1100 | 35.9 | 3922 | 146 | ||||
| P2141-030-1205-P2290-X | 19X19 | 15 | 25~40W | 90 | 2200 | 750 | 1100 | 35.9 | 2784 | 104 |
| P2141-030-1205-P2590-X | 2500 | 750 | 1100 | 35.9 | 2905 | 108 | ||||
| P2141-030-1205-P2790-X | 2700 | 750 | 1100 | 35.9 | 3026 | 113 | ||||
| P2141-030-1205-P3090-X | 3000 | 750 | 1100 | 35.9 | 3196 | 119 | ||||
| P2141-030-1205-P3590-X | 3500 | 750 | 1100 | 35.9 | 3293 | 122 | ||||
| P2141-030-1205-P4090-X | 4000 | 750 | 1100 | 35.9 | 3341 | 124 | ||||
| P2141-030-1205-P4590-X | 4500 | 750 | 1100 | 35.9 | 3377 | 126 | ||||
| P2141-030-1205-P5090-X | 5000 | 750 | 1100 | 35.9 | 3414 | 127 | ||||
| P2141-030-1205-P5790-X | 5700 | 750 | 1100 | 35.9 | 3414 | 127 | ||||
| P2141-030-1205-P6590-X | 6500 | 750 | 1100 | 35.9 | 3365 | 125 | ||||
| P2141-036-1206-P2280-X | 19X19 | 15 | 30~50W | 80 | 2200 | 900 | 1320 | 35.9 | 3922 | 122 |
| P2141-036-1206-P2580-X | 2500 | 900 | 1320 | 35.9 | 4067 | 126 | ||||
| P2141-036-1206-P2780-X | 2700 | 900 | 1320 | 35.9 | 4213 | 131 | ||||
| P2141-036-1206-P3080-X | 3000 | 900 | 1320 | 35.9 | 4445 | 138 | ||||
| P2141-036-1206-P3580-X | 3500 | 900 | 1320 | 35.9 | 4561 | 141 | ||||
| P2141-036-1206-P4080-X | 4000 | 900 | 1320 | 35.9 | 4678 | 145 | ||||
| P2141-036-1206-P4580-X | 4500 | 900 | 1320 | 35.9 | 4707 | 146 | ||||
| P2141-036-1206-P5080-X | 5000 | 900 | 1320 | 35.9 | 4736 | 147 | ||||
| P2141-036-1206-P5780-X | 5700 | 900 | 1320 | 35.9 | 4736 | 147 | ||||
| P2141-036-1206-P6580-X | 6500 | 900 | 1320 | 35.9 | 4678 | 145 | ||||
| P2141-036-1206-P2290-X | 19X19 | 15 | 30~50W | 90 | 2200 | 900 | 1320 | 35.9 | 3312 | 103 |
| P2141-036-1206-P2590-X | 2500 | 900 | 1320 | 35.9 | 3457 | 107 | ||||
| P2141-036-1206-P2790-X | 2700 | 900 | 1320 | 35.9 | 3603 | 112 | ||||
| P2141-036-1206-P3090-X | 3000 | 900 | 1320 | 35.9 | 3806 | 118 | ||||
| P2141-036-1206-P3590-X | 3500 | 900 | 1320 | 35.9 | 3922 | 122 | ||||
| P2141-036-1206-P4090-X | 4000 | 900 | 1320 | 35.9 | 3980 | 123 | ||||
| P2141-036-1206-P4590-X | 4500 | 900 | 1320 | 35.9 | 4024 | 125 | ||||
| P2141-036-1206-P5090-X | 5000 | 900 | 1320 | 35.9 | 4067 | 126 | ||||
| P2141-036-1206-P5790-X | 5700 | 900 | 1320 | 35.9 | 4067 | 126 | ||||
| P2141-036-1206-P6590-X | 6500 | 900 | 1320 | 35.9 | 4009 | 124 | ||||
| P2141-036-1206-P2797-X | 19X19 | 15 | 30~50W | 97 | 2700 | 900 | 1320 | 35.9 | 2810 | 87 |
| P2141-036-1206-P3097-X | 3000 | 900 | 1320 | 35.9 | 2969 | 92 | ||||
| P2141-036-1206-P3597-X | 3500 | 900 | 1320 | 35.9 | 3059 | 95 | ||||
| P2141-036-1206-P4097-X | 4000 | 900 | 1320 | 35.9 | 3105 | 96 | ||||
| P2141-036-1206-P4595-X | 95 | 4500 | 900 | 1320 | 35.9 | 3420 | 106 | |||
| P2141-036-1206-P5095-X | 5000 | 900 | 1320 | 35.9 | 3457 | 107 | ||||
| P2141-040-1207-P2280-X | 19X19 | 15 | 50~60W | 80 | 2200 | 1050 | 1540 | 35.9 | 4474 | 119 |
| P2141-040-1207-P2580-X | 2500 | 1050 | 1540 | 35.9 | 4644 | 123 | ||||
| P2141-040-1207-P2780-X | 2700 | 1050 | 1540 | 35.9 | 4813 | 128 | ||||
| P2141-040-1207-P3080-X | 3000 | 1050 | 1540 | 35.9 | 5084 | 135 | ||||
| P2141-040-1207-P3580-X | 3500 | 1050 | 1540 | 35.9 | 5220 | 139 | ||||
| P2141-040-1207-P4080-X | 4000 | 1050 | 1540 | 35.9 | 5355 | 142 | ||||
| P2141-040-1207-P4580-X | 4500 | 1050 | 1540 | 35.9 | 5389 | 143 | ||||
| P2141-040-1207-P5080-X | 5000 | 1050 | 1540 | 35.9 | 5423 | 144 | ||||
| P2141-040-1207-P5780-X | 5700 | 1050 | 1540 | 35.9 | 5423 | 144 | ||||
| P2141-040-1207-P6580-X | 6500 | 1050 | 1540 | 35.9 | 5355 | 142 | ||||
| P2141-040-1207-P2290-X | 19X19 | 15 | 50~60W | 90 | 2200 | 1050 | 1540 | 35.9 | 3762 | 100 |
| P2141-040-1207-P2590-X | 2500 | 1050 | 1540 | 35.9 | 3932 | 104 | ||||
| P2141-040-1207-P2790-X | 2700 | 1050 | 1540 | 35.9 | 4101 | 109 | ||||
| P2141-040-1207-P3090-X | 3000 | 1050 | 1540 | 35.9 | 4339 | 115 | ||||
| P2141-040-1207-P3590-X | 3500 | 1050 | 1540 | 35.9 | 4474 | 119 | ||||
| P2141-040-1207-P4090-X | 4000 | 1050 | 1540 | 35.9 | 4542 | 121 | ||||
| P2141-040-1207-P4590-X | 4500 | 1050 | 1540 | 35.9 | 4593 | 122 | ||||
| P2141-040-1207-P5090-X | 5000 | 1050 | 1540 | 35.9 | 4644 | 123 | ||||
| P2141-040-1207-P5790-X | 5700 | 1050 | 1540 | 35.9 | 4644 | 123 | ||||
| P2141-040-1207-P6590-X | 6500 | 1050 | 1540 | 35.9 | 4576 | 122 | ||||
| P2141-050-1208-P2280-X | 19X19 | 15 | 60~70W | 80 | 2200 | 1200 | 1760 | 35.9 | 5036 | 117 |
| P2141-050-1208-P2580-X | 2500 | 1200 | 1760 | 35.9 | 5230 | 122 | ||||
| P2141-050-1208-P2780-X | 2700 | 1200 | 1760 | 35.9 | 5423 | 126 | ||||
| P2141-050-1208-P3080-X | 3000 | 1200 | 1760 | 35.9 | 5733 | 133 | ||||
| P2141-050-1208-P3580-X | 3500 | 1200 | 1760 | 35.9 | 5888 | 137 | ||||
| P2141-050-1208-P4080-X | 4000 | 1200 | 1760 | 35.9 | 6043 | 140 | ||||
| P2141-050-1208-P4580-X | 4500 | 1200 | 1760 | 35.9 | 6082 | 141 | ||||
| P2141-050-1208-P5080-X | 5000 | 1200 | 1760 | 35.9 | 6121 | 142 | ||||
| P2141-050-1208-P5780-X | 5700 | 1200 | 1760 | 35.9 | 6121 | 142 | ||||
| P2141-050-1208-P6580-X | 6500 | 1200 | 1760 | 35.9 | 6043 | 140 | ||||
| P2141-050-1208-P2290-X | 19X19 | 15 | 60~70W | 90 | 2200 | 1200 | 1760 | 35.9 | 4222 | 98 |
| P2141-050-1208-P2590-X | 2500 | 1200 | 1760 | 35.9 | 4416 | 103 | ||||
| P2141-050-1208-P2790-X | 2700 | 1200 | 1760 | 35.9 | 4610 | 107 | ||||
| P2141-050-1208-P3090-X | 3000 | 1200 | 1760 | 35.9 | 4881 | 113 | ||||
| P2141-050-1208-P3590-X | 3500 | 1200 | 1760 | 35.9 | 5036 | 117 | ||||
| P2141-050-1208-P4090-X | 4000 | 1200 | 1760 | 35.9 | 5113 | 119 | ||||
| P2141-050-1208-P4590-X | 4500 | 1200 | 1760 | 35.9 | 5171 | 120 | ||||
| P2141-050-1208-P5090-X | 5000 | 1200 | 1760 | 35.9 | 5230 | 122 | ||||
| P2141-050-1208-P5790-X | 5700 | 1200 | 1760 | 35.9 | 5230 | 122 | ||||
| P2141-050-1208-P6590-X | 6500 | 1200 | 1760 | 35.9 | 5152 | 120 | ||||
| P2141-060-1210-P2280-X | 19X19 | 15 | 70~80W | 80 | 2200 | 1500 | 2200 | 35.9 | 6246 | 116 |
| P2141-060-1210-P2580-X | 2500 | 1500 | 2200 | 35.9 | 6489 | 121 | ||||
| P2141-060-1210-P2780-X | 2700 | 1500 | 2200 | 35.9 | 6731 | 125 | ||||
| P2141-060-1210-P3080-X | 3000 | 1500 | 2200 | 35.9 | 7118 | 132 | ||||
| P2141-060-1210-P3580-X | 3500 | 1500 | 2200 | 35.9 | 7312 | 136 | ||||
| P2141-060-1210-P4080-X | 4000 | 1500 | 2200 | 35.9 | 7505 | 140 | ||||
| P2141-060-1210-P4580-X | 4500 | 1500 | 2200 | 35.9 | 7554 | 140 | ||||
| P2141-060-1210-P5080-X | 5000 | 1500 | 2200 | 35.9 | 7602 | 141 | ||||
| P2141-060-1210-P5780-X | 5700 | 1500 | 2200 | 35.9 | 7602 | 141 | ||||
| P2141-060-1210-P6580-X | 6500 | 1500 | 2200 | 35.9 | 7505 | 140 | ||||
| P2141-060-1210-P2290-X | 19X19 | 15 | 70~80W | 90 | 2200 | 1500 | 2200 | 35.9 | 5230 | 97 |
| P2141-060-1210-P2590-X | 2500 | 1500 | 2200 | 35.9 | 5472 | 102 | ||||
| P2141-060-1210-P2790-X | 2700 | 1500 | 2200 | 35.9 | 5714 | 106 | ||||
| P2141-060-1210-P3090-X | 3000 | 1500 | 2200 | 35.9 | 6053 | 113 | ||||
| P2141-060-1210-P3590-X | 3500 | 1500 | 2200 | 35.9 | 6246 | 116 | ||||
| P2141-060-1210-P4090-X | 4000 | 1500 | 2200 | 35.9 | 6343 | 118 | ||||
| P2141-060-1210-P4590-X | 4500 | 1500 | 2200 | 35.9 | 6416 | 119 | ||||
| P2141-060-1210-P5090-X | 5000 | 1500 | 2200 | 35.9 | 6489 | 121 | ||||
| P2141-060-1210-P5790-X | 5700 | 1500 | 2200 | 35.9 | 6489 | 121 | ||||
| P2141-060-1210-P6590-X | 6500 | 1500 | 2200 | 35.9 | 6392 | 119 |
