3535 Series

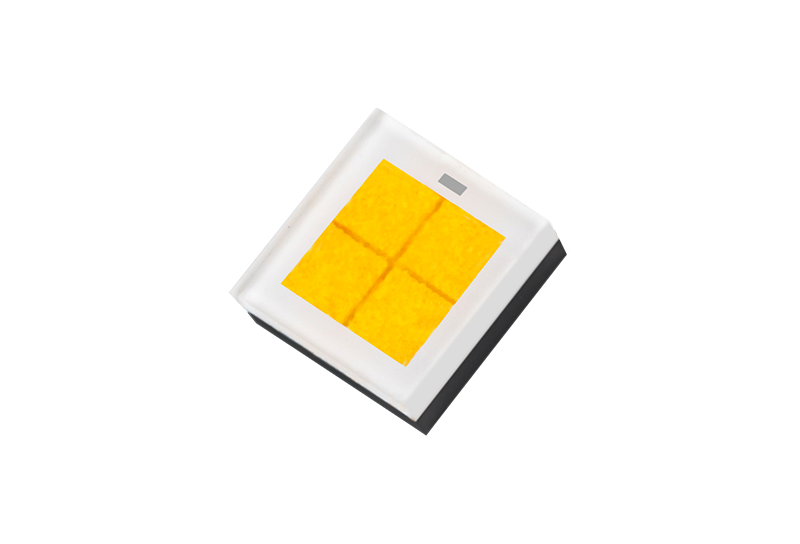

HP2-D3535N

  • 3.5X3.5X1.1mm
  • LES 2.45X2.45mm
  • Power: 12W

Features

  • Industry leading high brightness, high light efficacy

  • Higher center illumination, high power density

  • Standard package size, suitable for universal lens, drive

  • Advanced technology and digital manufacturing system, quality assurance

HP2-D3535N Parameter

Product CodeSize
(mm)
LES
(mm)
Chip quantityCCT
(K)
CRIMAX Power
(W)
VF
(V)
MAX IF
(mA)
Typical IF
(mA)
Luminous Flux (lm)(Im/w)Colorimetric standard
TypicalMin-Max
HP2-D3535N-004-0401A2780SS3.5*3.5*1.12.45*2.4542700801211.51000350480425-540120ANSI3-step 分bin
HP2-D3535N-004-0401A3080SS3000522460-585130
HP2-D3535N-004-0401A3580SS3500540480-605135
HP2-D3535N-004-0401A4080SS4000550485-615135
HP2-D3535N-004-0401A2790SS3.5*3.5*1.12.45*2.4542700901211.51000350420375-470105ANSI3-step 分bin
HP2-D3535N-004-0401A3090SS3000460405-510115
HP2-D3535N-004-0401A3590SS3500475415-530120
HP2-D3535N-004-0401A4090SS4000480420-540120
